SYSTEM D
Items:
0
004321001
DI UQ gR 2A/500V
- Class name:
- Fuse link
- Operating joule integral (A2s):
- 5,8
004321002
DI UQ gR 4A/500V
- Class name:
- Fuse link
- Operating joule integral (A2s):
- 11
004321003
DI UQ gR 6A/500V
- Class name:
- Fuse link
- Operating joule integral (A2s):
- 18
004321004
DI UQ gR 10A/500V
- Class name:
- Fuse link
- Operating joule integral (A2s):
- 40
004321005
DI UQ gR 16A/500V
- Class name:
- Fuse link
- Operating joule integral (A2s):
- 60
004321006
DI UQ gR 20A/500V
- Class name:
- Fuse link
- Operating joule integral (A2s):
- 139
004321007
DI UQ gR 25A/500V
- Class name:
- Fuse link
- Operating joule integral (A2s):
- 205
004322001
DII UQ gR 2A/500V
- Class name:
- Fuse link
- Operating joule integral (A2s):
- 5,8
004322002
DII UQ gR 4A/500V
- Class name:
- Fuse link
- Operating joule integral (A2s):
- 11
004322003
DII UQ gR 6A/500V
- Class name:
- Fuse link
- Operating joule integral (A2s):
- 18
004322004
DII UQ gR 10A/500V
- Class name:
- Fuse link
- Operating joule integral (A2s):
- 40

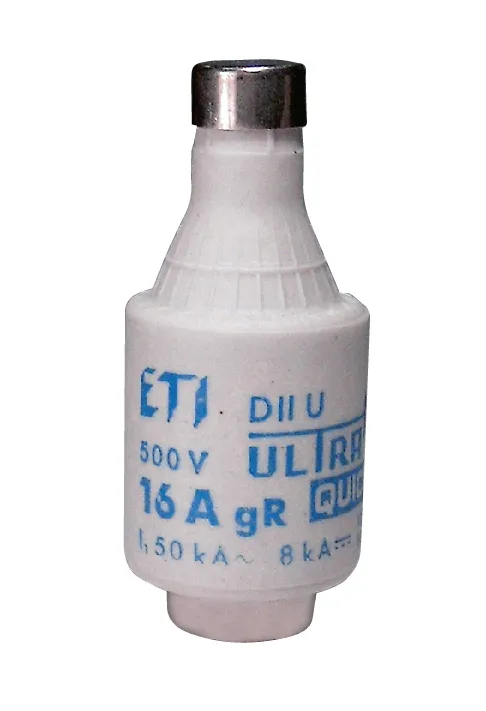

004322005
DII UQ gR 16A/500V
- Class name:
- Fuse link
- Operating joule integral (A2s):
- 60
004322006
DII UQ gR 20A/500V
- Class name:
- Fuse link
- Operating joule integral (A2s):
- 139
004322007
DII UQ gR 25A/500V
- Class name:
- Fuse link
- Operating joule integral (A2s):
- 205
004322008
DII UQ gR 30A/500V
- Class name:
- Fuse link
- Operating joule integral (A2s):
- 310

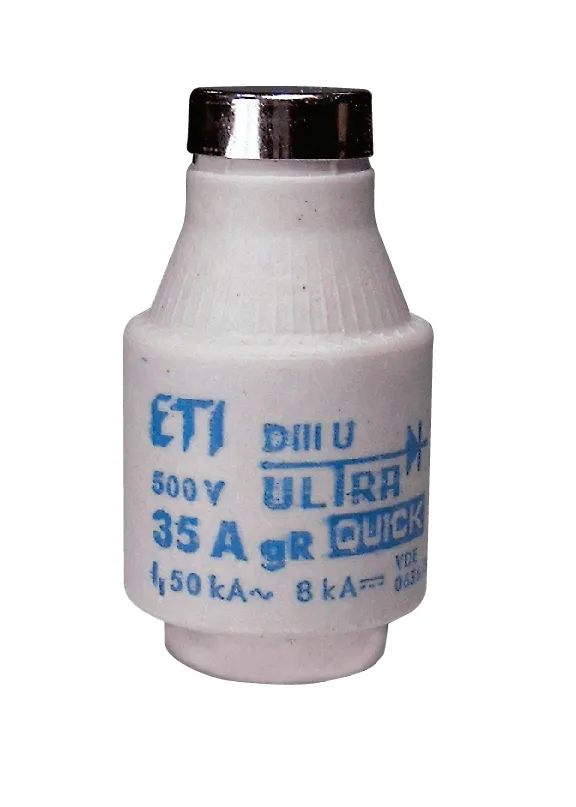

004323001
DIII UQ gR 35A/500V
- Class name:
- Fuse link
- Operating joule integral (A2s):
- 539
004323002
DIII UQ gR 50A/500V
- Class name:
- Fuse link
- Operating joule integral (A2s):
- 1.250
004323003
DIII UQ gR 63A/500V
- Class name:
- Fuse link
- Operating joule integral (A2s):
- 1.890
004324001
DIV UQ gR 80A/500V
- Class name:
- Fuse link
- Operating joule integral (A2s):
- 4.200
004324002
DIV UQ gR 100A/500V
- Class name:
- Fuse link
- Operating joule integral (A2s):
- 8.450
004325001
DV UQ gR 125A/500V
- Class name:
- Fuse link
- Operating joule integral (A2s):
- 16.000
004325002
DV UQ gR 160A/500V
- Class name:
- Fuse link
- Operating joule integral (A2s):
- 24.000
004325003
DV UQ gR 200A/500V
- Class name:
- Fuse link
- Operating joule integral (A2s):
- 40.000
