Filter type
Clear all
Expand all
Open all
Number of poles
16
12
Thermal current Ith (A)
2
3
2
2
5
2
2
1
2
2
1
2
2
Rated operational current Ie AC-21 A/B at 415V (A)
2
3
2
2
5
2
2
1
2
2
1
2
2
Mounting
8
20

Load break switch LBS

Items: 0
Switch disconnector LBS 160 3P 004661450
004661450
LBS 160 3P
Class name:
Switch disconnector
Number of poles:
3
Thermal current Ith (A):
160
Rated operational current Ie AC-21 A/B at 415V (A):
160
Rated insulation voltage (V):
800
Switch disconnector LBS 250 3P 004661451
004661451
LBS 250 3P
Class name:
Switch disconnector
Number of poles:
3
Thermal current Ith (A):
250
Rated operational current Ie AC-21 A/B at 415V (A):
250
Rated insulation voltage (V):
800
Switch disconnector LBS 400 3P 004661452
004661452
LBS 400 3P
Class name:
Switch disconnector
Number of poles:
3
Thermal current Ith (A):
400
Rated operational current Ie AC-21 A/B at 415V (A):
400
Rated insulation voltage (V):
1000
Switch disconnector LBS 630 3P 004661453
004661453
LBS 630 3P
Class name:
Switch disconnector
Number of poles:
3
Thermal current Ith (A):
630
Rated operational current Ie AC-21 A/B at 415V (A):
630
Rated insulation voltage (V):
1000
Switch disconnector LBS 800 3P 004661454
004661454
LBS 800 3P
Class name:
Switch disconnector
Number of poles:
3
Thermal current Ith (A):
800
Rated operational current Ie AC-21 A/B at 415V (A):
800
Rated insulation voltage (V):
1000
Switch disconnector LBS 1000 3P 004661455
004661455
LBS 1000 3P
Class name:
Switch disconnector
Number of poles:
3
Thermal current Ith (A):
1000
Rated operational current Ie AC-21 A/B at 415V (A):
1000
Rated insulation voltage (V):
1000
Switch disconnector LBS 1250 3P 004661456
004661456
LBS 1250 3P
Class name:
Switch disconnector
Number of poles:
3
Thermal current Ith (A):
1250
Rated operational current Ie AC-21 A/B at 415V (A):
1250
Rated insulation voltage (V):
1000
Switch disconnector LBS 1600 3P 004661457
004661457
LBS 1600 3P
Class name:
Switch disconnector
Number of poles:
3
Thermal current Ith (A):
1600
Rated operational current Ie AC-21 A/B at 415V (A):
1600
Rated insulation voltage (V):
1000
Switch disconnector LBS 2000 3P 004661458
004661458
LBS 2000 3P
Class name:
Switch disconnector
Number of poles:
3
Thermal current Ith (A):
2000
Rated operational current Ie AC-21 A/B at 415V (A):
2000
Rated insulation voltage (V):
1000
Switch disconnector LBS 2500 3P 004661459
004661459
LBS 2500 3P
Class name:
Switch disconnector
Number of poles:
3
Thermal current Ith (A):
2500
Rated operational current Ie AC-21 A/B at 415V (A):
2500
Rated insulation voltage (V):
1000
Switch disconnector LBS 3200 3P 004661460
004661460
LBS 3200 3P
Class name:
Switch disconnector
Number of poles:
3
Thermal current Ith (A):
3200
Rated operational current Ie AC-21 A/B at 415V (A):
3200
Rated insulation voltage (V):
1000

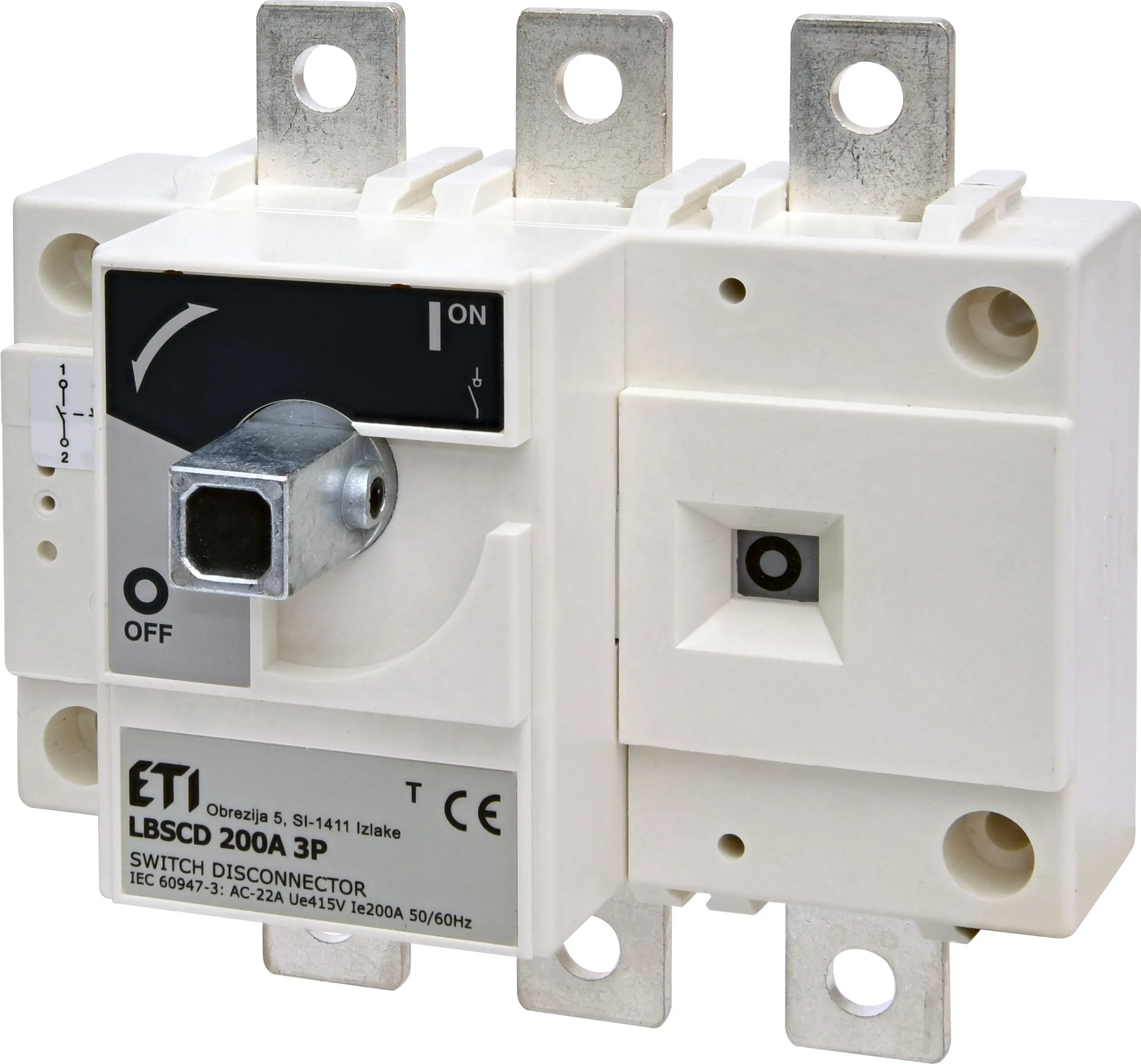

Switch disconnector LBSCD 200 3P 004661912
004661912
LBSCD 200 3P
Class name:
Switch disconnector
Number of poles:
3
Thermal current Ith (A):
200
Rated operational current Ie AC-21 A/B at 415V (A):
200
Rated insulation voltage (V):
800

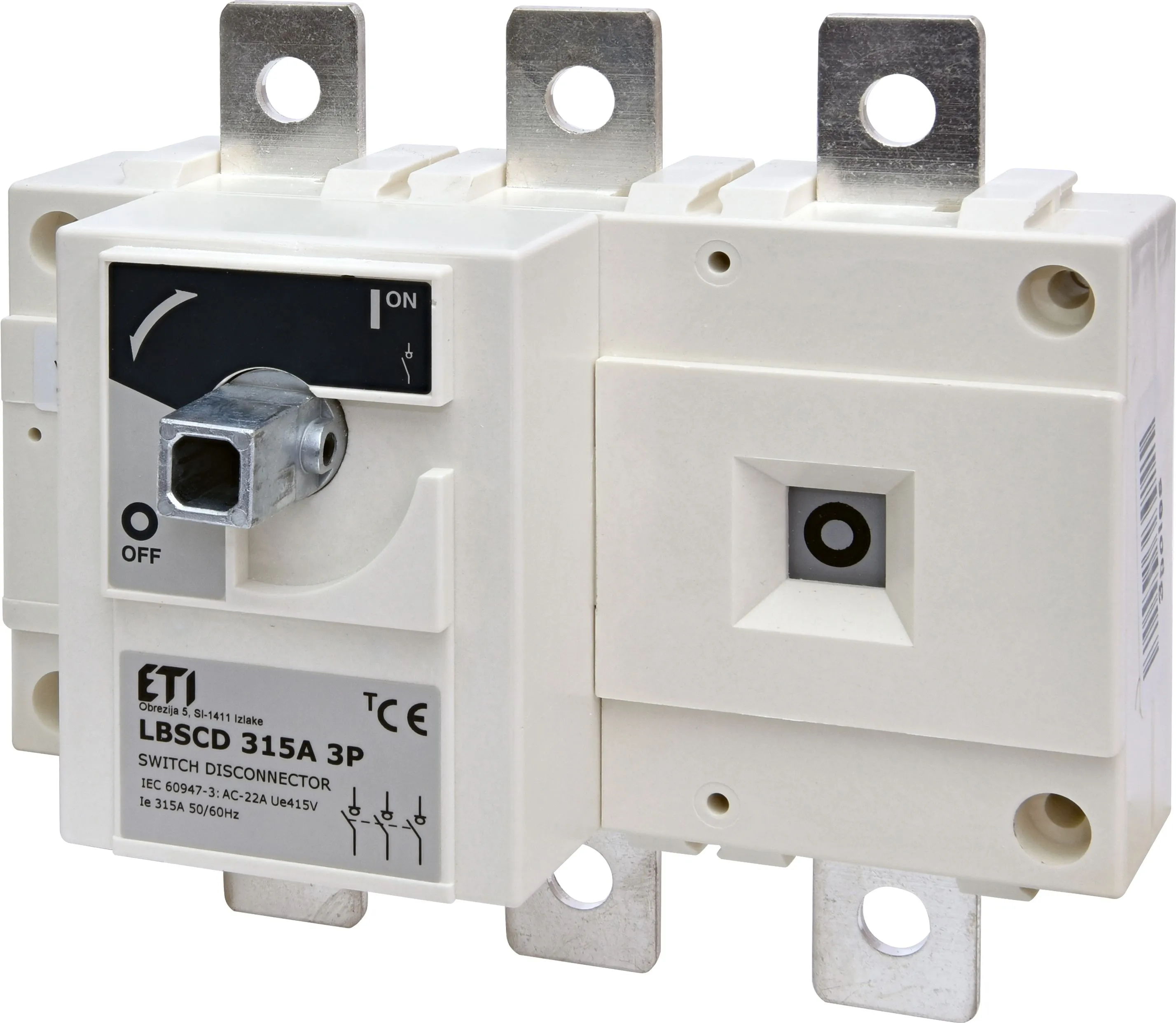

Switch disconnector LBSCD 315 3P 004661913
004661913
LBSCD 315 3P
Class name:
Switch disconnector
Number of poles:
3
Thermal current Ith (A):
315
Rated operational current Ie AC-21 A/B at 415V (A):
315
Rated insulation voltage (V):
800

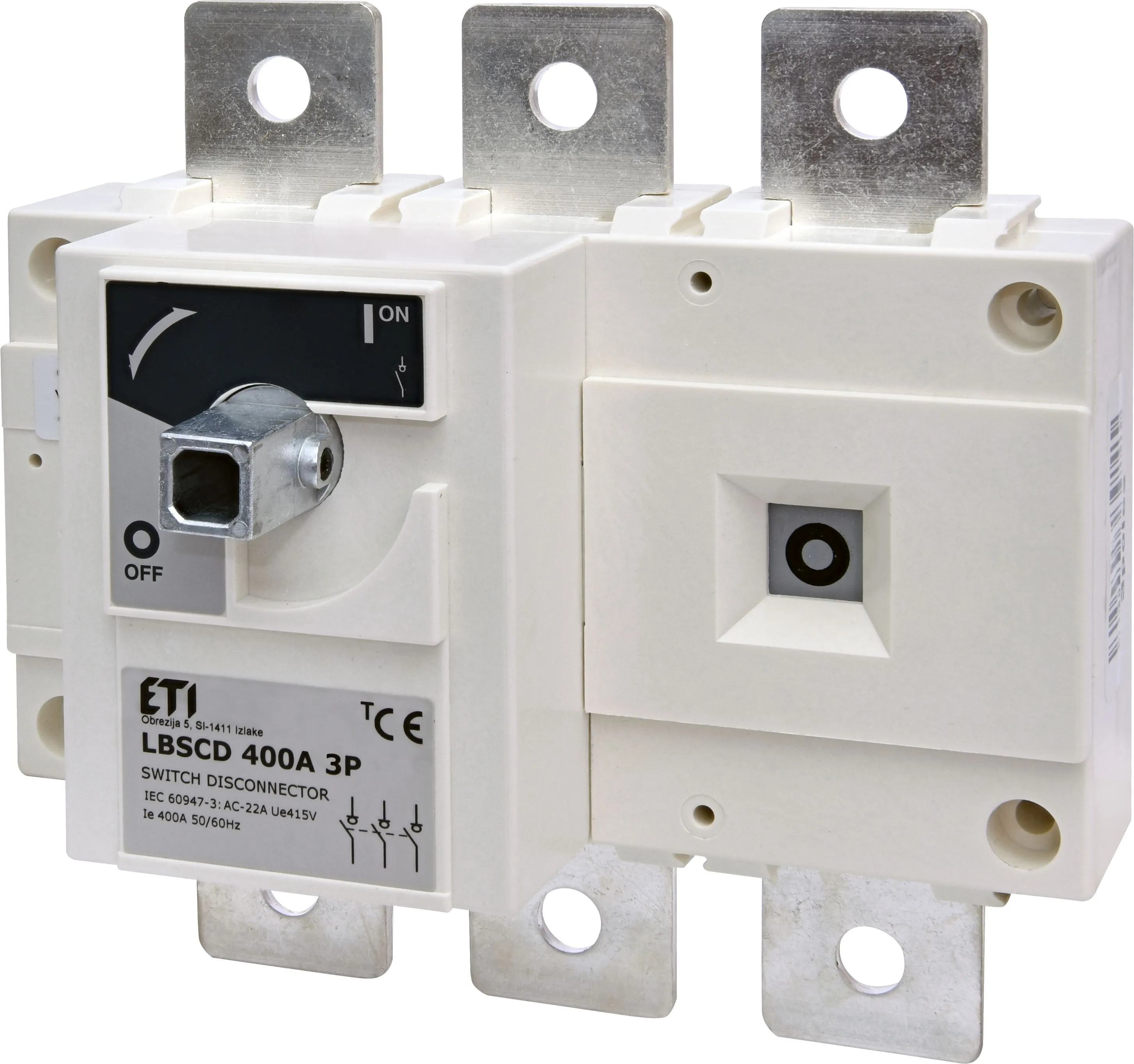

Switch disconnector LBSCD 400 3P 004661914
004661914
LBSCD 400 3P
Class name:
Switch disconnector
Number of poles:
3
Thermal current Ith (A):
400
Rated operational current Ie AC-21 A/B at 415V (A):
400
Rated insulation voltage (V):
800
Switch disconnector LBS 200 3P AC1000 004661923
004661923
LBS 200 3P AC1000
Class name:
Switch disconnector
Number of poles:
3
Thermal current Ith (A):
200
Rated operational current Ie AC-21 A/B at 415V (A):
200
Rated insulation voltage (V):
1000
Switch disconnector LBS 400 3P AC1000 004661924
004661924
LBS 400 3P AC1000
Class name:
Switch disconnector
Number of poles:
3
Thermal current Ith (A):
400
Rated operational current Ie AC-21 A/B at 415V (A):
400
Rated insulation voltage (V):
1000
Switch disconnector LBS 160 4P 004661461
004661461
LBS 160 4P
Class name:
Switch disconnector
Number of poles:
4
Thermal current Ith (A):
160
Rated operational current Ie AC-21 A/B at 415V (A):
160
Rated insulation voltage (V):
1000
Switch disconnector LBS 250 4P 004661462
004661462
LBS 250 4P
Class name:
Switch disconnector
Number of poles:
4
Thermal current Ith (A):
250
Rated operational current Ie AC-21 A/B at 415V (A):
250
Rated insulation voltage (V):
1000
Switch disconnector LBS 400 4P 004661463
004661463
LBS 400 4P
Class name:
Switch disconnector
Number of poles:
4
Thermal current Ith (A):
400
Rated operational current Ie AC-21 A/B at 415V (A):
400
Rated insulation voltage (V):
1000
Switch disconnector LBS 630 4P 004661464
004661464
LBS 630 4P
Class name:
Switch disconnector
Number of poles:
4
Thermal current Ith (A):
630
Rated operational current Ie AC-21 A/B at 415V (A):
630
Rated insulation voltage (V):
1000
Switch disconnector LBS 800 4P 004661465
004661465
LBS 800 4P
Class name:
Switch disconnector
Number of poles:
4
Thermal current Ith (A):
800
Rated operational current Ie AC-21 A/B at 415V (A):
800
Rated insulation voltage (V):
1000
Switch disconnector LBS 1250 4P 004661466
004661466
LBS 1250 4P
Class name:
Switch disconnector
Number of poles:
4
Thermal current Ith (A):
1250
Rated operational current Ie AC-21 A/B at 415V (A):
1250
Rated insulation voltage (V):
1000
Switch disconnector LBS 1600 4P 004661467
004661467
LBS 1600 4P
Class name:
Switch disconnector
Number of poles:
4
Thermal current Ith (A):
1600
Rated operational current Ie AC-21 A/B at 415V (A):
1600
Rated insulation voltage (V):
1000
Switch disconnector LBS 2500 4P 004661468
004661468
LBS 2500 4P
Class name:
Switch disconnector
Number of poles:
4
Thermal current Ith (A):
2500
Rated operational current Ie AC-21 A/B at 415V (A):
2500
Rated insulation voltage (V):
1000
Switch disconnector LBS 3200 4P 004661469
004661469
LBS 3200 4P
Class name:
Switch disconnector
Number of poles:
4
Thermal current Ith (A):
3200
Rated operational current Ie AC-21 A/B at 415V (A):
3200
Rated insulation voltage (V):
1000
Switch disconnector LBSCD 200 4P 004661915
004661915
LBSCD 200 4P
Class name:
Switch disconnector
Number of poles:
4
Thermal current Ith (A):
200
Rated operational current Ie AC-21 A/B at 415V (A):
200
Rated insulation voltage (V):
800
Switch disconnector LBSCD 315 4P 004661916
004661916
LBSCD 315 4P
Class name:
Switch disconnector
Number of poles:
4
Thermal current Ith (A):
315
Rated operational current Ie AC-21 A/B at 415V (A):
315
Rated insulation voltage (V):
800
Switch disconnector LBSCD 400 4P 004661917
004661917
LBSCD 400 4P
Class name:
Switch disconnector
Number of poles:
4
Thermal current Ith (A):
400
Rated operational current Ie AC-21 A/B at 415V (A):
400
Rated insulation voltage (V):
800
>
>
