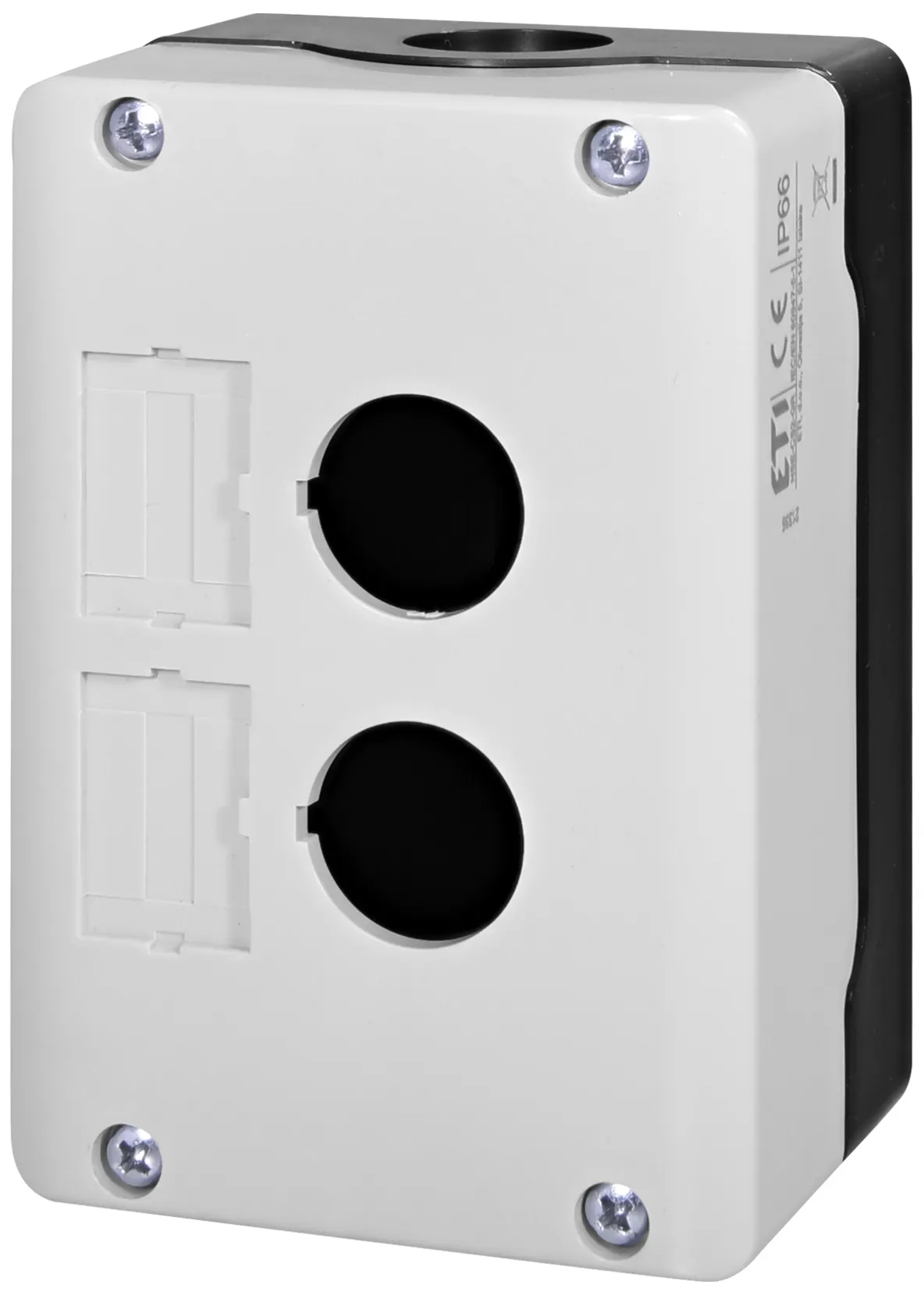

Enclosure NSE-CS2-GR 004774152

Specifications

ETI Code:
004774152
Description:
NSE-CS2-GR
Class name:
Enclosure

Documents

Product

Net weight of the product
0.16  kg
Customs tariff
85381000
logis_net_width
117  mm
logis_net_height
79  mm
logis_net_depth
58  mm

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
7909712855614
Transport packaging weight
0.17  kg
Pallet quantity
1256
004774152 Flush mounted enclosure Enclosure, NSE-CS2-GR ETISIG NSE Push button stations and enclosures NSE Push button stations and enclosures Enclosures Enclosures Enclosures Automation, signaling and control devices Actuators and indicators 22,5mm ETISIG Push button stations and enclosures with accessories Enclosures Function Control station enclosure Type 2 holes For use with Integral pushbuttons and LED indicators IP rating IP66 (NEMA 4X) Connection ØM20 PG13,5 1 2” and ØM16 3 8” Color Grey (RAL 7035) Black (RAL 9005) Standards IEC 60947-5-1, IEC 50102, IEC 60529, UL 508, UL 50 Application External Internal Working temperature -25 ... 70°C Material Polycarbonate Approvals CE Enclosure NSE Control station enclosure Grey (RAL 7035) / Black (RAL 9005)
