Fuse link CH10x38 gG 32A/400V 002651022

Specifications

ETI Code:
002651022
Description:
CH10x38 gG 32A/400V
Class name:
Fuse link
Type:
CH
Size:
10x38
Rated current (A):
32
Rated AC voltage (V):
400
Characteristics:
gG
Breaking capacity AC (kA):
120
Application:
For cable protection
Power dissipation (W):
2,8
Standards:
IEC 60269-1, IEC 60269-2

Documents

Product

Customs tariff
85361050

Basic packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838400094728
Basic packaging weight
0.082  kg

Transport packaging

Transport packaging quantity
1800
EAN code for a transport packaging
3838400094735
Transport packaging weight
15.131  kg
Pallet quantity
57600
Classification
EC000035
Class name
Miniature fuse
Voltage type
AC
Rated current
32A
Rated voltage
400V
ETIM Classification – Version 7.0

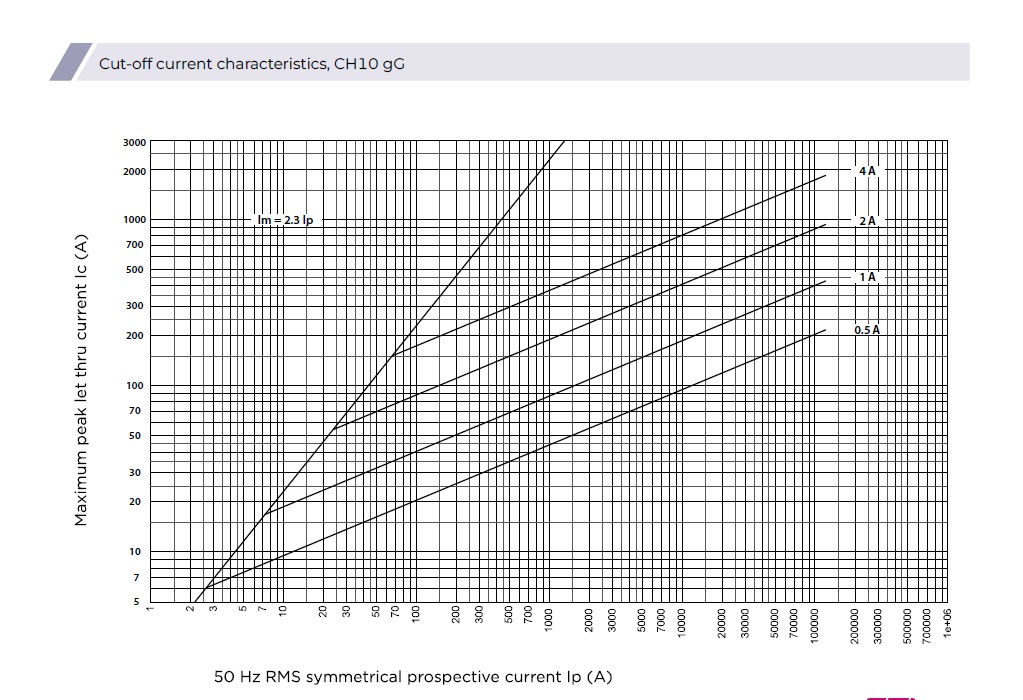

Images & Diagrams

Software & drivers

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
002651022 Fuse link, CH10x38 gG 32A/400V C Cylindrical fuse-links CH CH10 gG gG Fuse links D, D0, C C fuse links CH10X38 GG 32A/4 Rated current 32A Type CH Size 10x38 Characteristics gG Rated AC voltage 400V Dimensions 10x38 Breaking capacity AC 120kA Power dissipation 2,8W Standards IEC 60269-1, IEC 60269-2 Application For cable protection
