Assemblied distribution box EDS4D 2/2 16 C 001105826

Specifications

ETI Code:
001105826
Description:
EDS4D 2/2 16 C
Class name:
Assemblied distribution box
Rated current (A):
32
Rated voltage (V):
400
Type: socket/plug:
2x16A(5P), 2xGROUND PIN
Number of modules:
4
IP rating:
IP44
MCBs_applied_EDS:
1xC16/1, 1xC16/3

Documents

Product

Customs tariff
85366990

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
3838400148520
Transport packaging weight
1.3  kg
Pallet quantity
123
Classification
EC000379
Class name
CEE socket outlet combination
CEE socket outlet 16 A
2x16A5p400V
CEE socket outlet 32 A
None
CEE socket outlet 63 A
None
CEE socket outlet 125 A
None
Protection
Overcurrent switch
Earth leakage switch
Earth leakage switch with IFN 30 mA (standard)
Number of miniature circuit breakers (MCB)
2
Housing material
Plastic
Power supply/connection possibility
1 cable (branch line)
Type of mains connection
M25
Handling
Portable
Degree of protection (IP)
IP44
Colour
Grey
Height
315mm
Width
222mm
Depth
116mm
ETIM Classification – Version 7.0

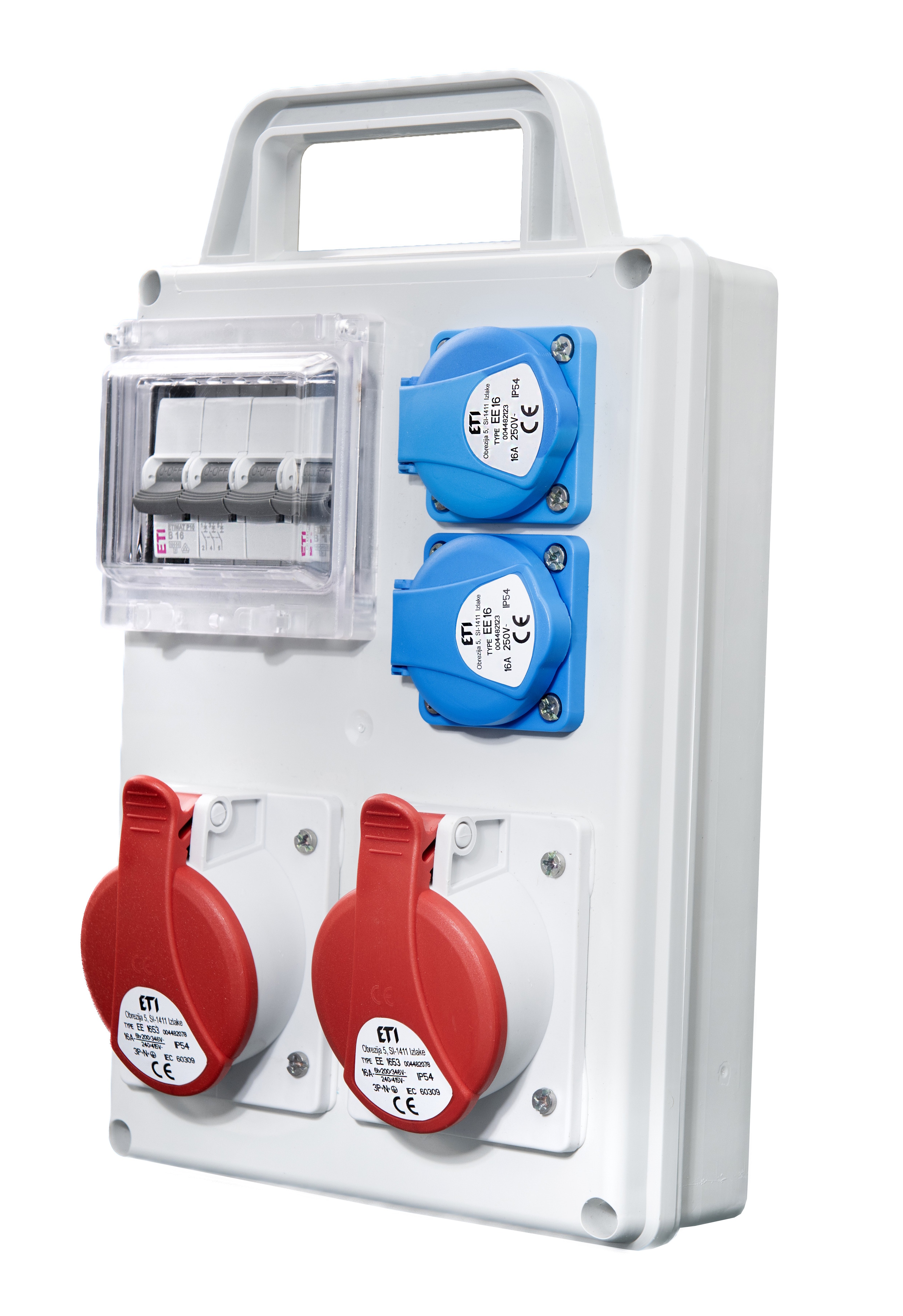

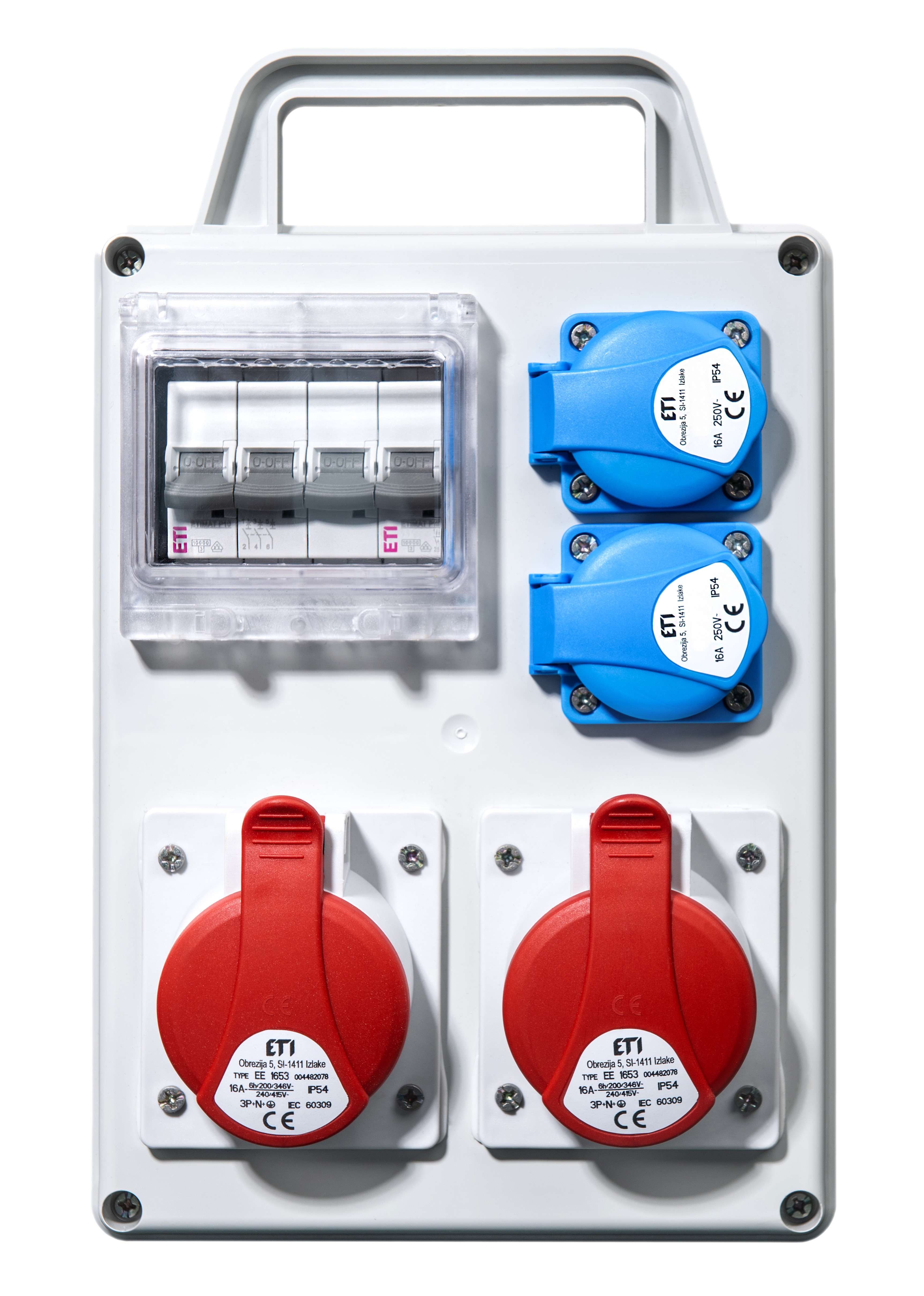

Images & Diagrams

001105826 Flush mounted enclosure Assemblied distribution box, EDS4D 2/2 16 C ETICEE Industrial plug-in equipment Distribution boxes EDS Distribution boxes EDS EDS 4 EDS 4 H with handle IP44 Industrial plugs, sockets and industrial distribution boxes ETICEE Industrial distribution boxes EDS EDS4D 2/2 16 C Rated current 32A Rated voltage 400V IP rating IP44 Type: socket/plug 2x16A(5P), 2xGROUND PIN 1xC16 1, 1xC16 3 Number of modules 4 Assemblied distribution box EDS4D 32A 400V 4 IP44
