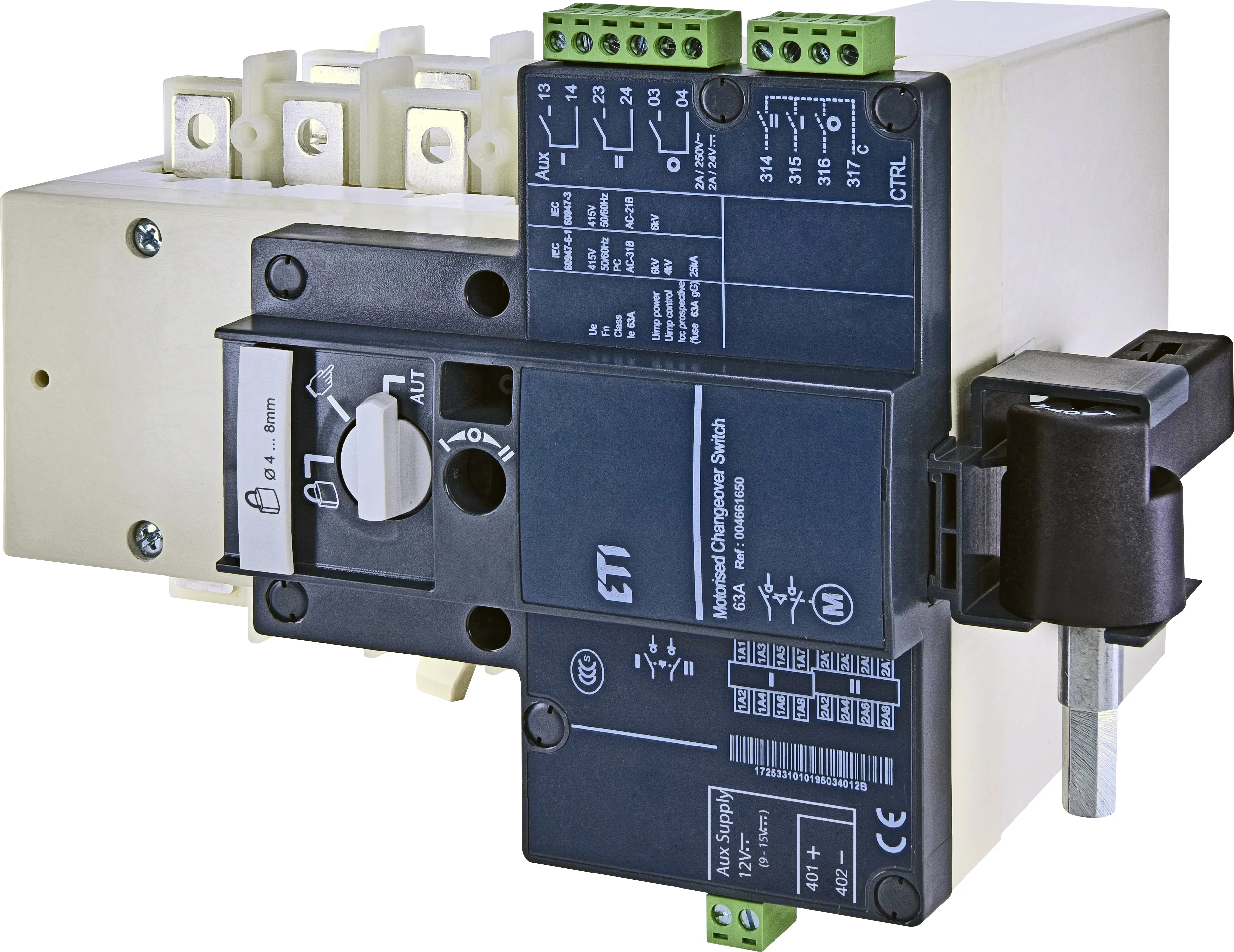

Changeover switch motor op. MLBS 63 4P CO 12VDC 004661650

Specifications

ETI Code:
004661650
Description:
MLBS 63 4P CO 12VDC
Class name:
Changeover switch motor op.
Number of poles:
4
Thermal current Ith (A):
63A
Rated operational current Ie AC-21 A/B at 415V (A):
63A
Rated insulation voltage (V):
800V
Max. rated operational voltage (V AC):
690V
Control voltage (V):
12VDC

Documents

Product

Net weight of the product
3.24  kg
Customs tariff
85365080
logis_net_width
235  mm
logis_net_height
163  mm
logis_net_depth
182  mm

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
3838895720164
Transport packaging weight
3.24  kg
Pallet quantity
120
Classification
EC000216
Class name
Switch disconnector
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Max. rated operation voltage Ue AC
415V
Rated permanent current Iu
63A
Number of poles
4
Motor drive integrated
Yes
Voltage release optional
No
Device construction
Complete device in housing
Suitable for floor mounting
Yes
Type of control element
Toggle
ETIM Classification – Version 7.0
004661650 Flush mounted enclosure Changeover switch motor op., MLBS 63 4P CO 12VDC ETISWITCH Motorised Change Over Load Break Switch MLBS..CO (1-0-2) Motorised Change Over Load Break Switch MLBS..CO 63 A - 125 A Motorised Change Over Load Break Switch MLBS..CO 63 A - 125 A Motorised Change Over Load Break Switch MLBS..CO 63 A - 125 A Switches for panel mounting ETISWITCH Motorised Change Over Load Break Switch MLBS..CO (1-0-2) MLBS 63 4P CO 12 Rated current 63A Type 12VDC Mounting type Base plate mounting Number of poles 4 Mounting Panel mounted Catalogue Group Motorised Change Over Load Break Switch MLBS..CO Max. rated operational voltage 690V AC Rated operational current Ie AC-21 A/B at 415V 63A Rated insulation voltage 800V Thermal current Ith 63A Control voltage 12 V DCV Changeover switch motor op. MLBS Panel mounted 4 63A 800V
