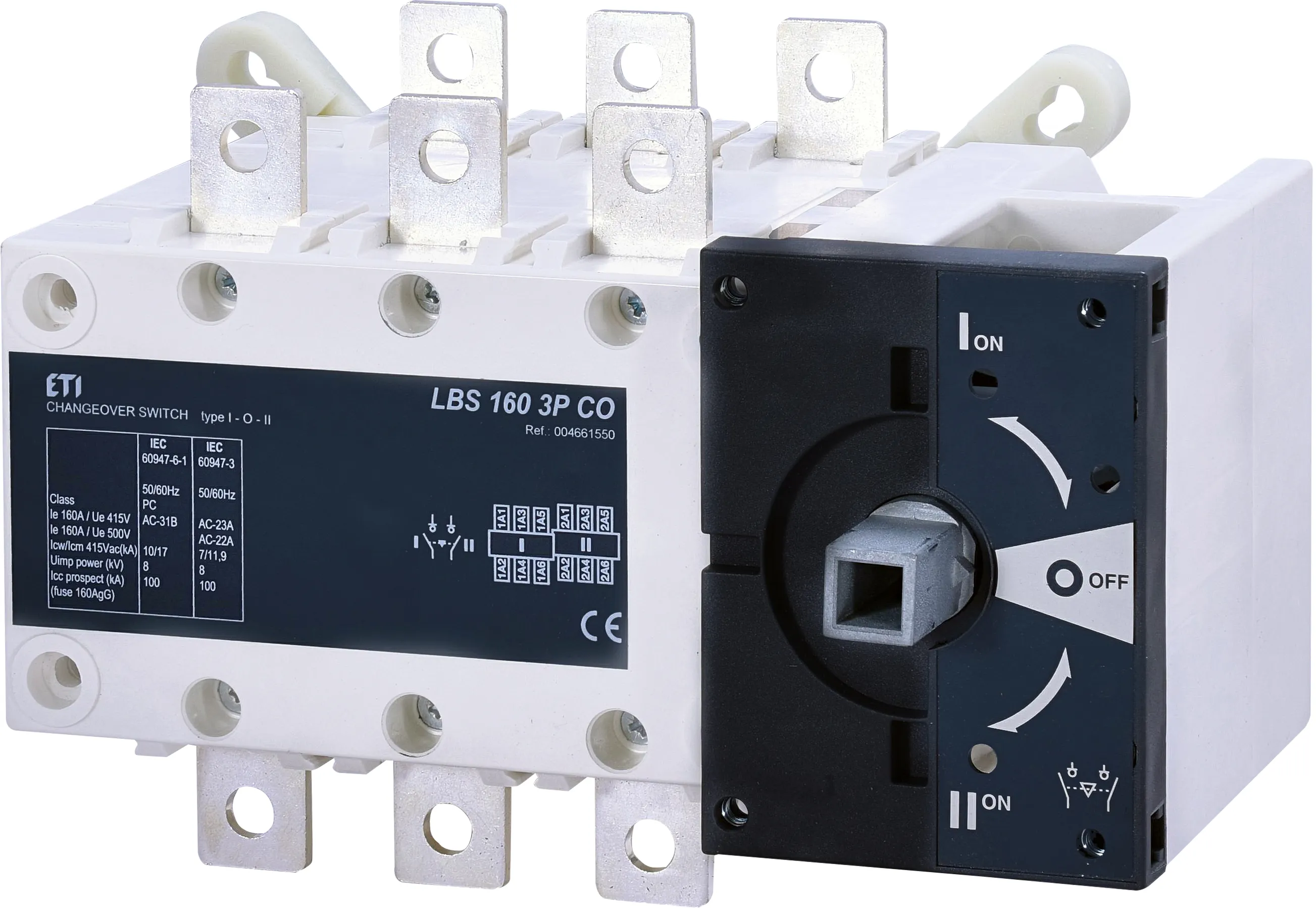

Changeover switch LBS 160 3P CO 004661550

Specifications

ETI Code:
004661550
Description:
LBS 160 3P CO
Class name:
Changeover switch
Number of poles:
3
Thermal current Ith (A):
160A
Rated operational current Ie AC-21 A/B at 415V (A):
160A
Rated insulation voltage (V):
800V
Max. rated operational voltage (V AC):
690V

Documents

Product

Net weight of the product
3.188  kg
Customs tariff
85365080
logis_net_width
221  mm
logis_net_height
135  mm
logis_net_depth
173  mm

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
3838895719632
Transport packaging weight
3.188  kg
Pallet quantity
100
Classification
EC000216
Class name
Switch disconnector
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
Yes
Max. rated operation voltage Ue AC
415V
Rated permanent current Iu
160A
Rated operation power at AC-23, 400 V
80kW
Number of poles
3
Motor drive integrated
No
Suitable for floor mounting
Yes
Type of control element
Toggle
ETIM Classification – Version 7.0
004661550 Flush mounted enclosure Changeover switch, LBS 160 3P CO ETISWITCH Load Break Change Over Switch LBS..CO LBS CO body (no handle included) 3/4 POLES LBS CO body (no handle included) 3/4 POLES 3P Switches for panel mounting ETISWITCH Change-over switches 1-0-2 LBS LBS 160 3P CO Rated current 160A Mounting type Base plate mounting Number of poles 3 Mounting Panel mounted Catalogue Group Load Break Change Over Switch LBS..CO Max. rated operational voltage 690V AC Rated operational current Ie AC-21 A/B at 415V 160A Rated insulation voltage 800V Thermal current Ith 160A Changeover switch LBS Panel mounted 3 160A 800V
