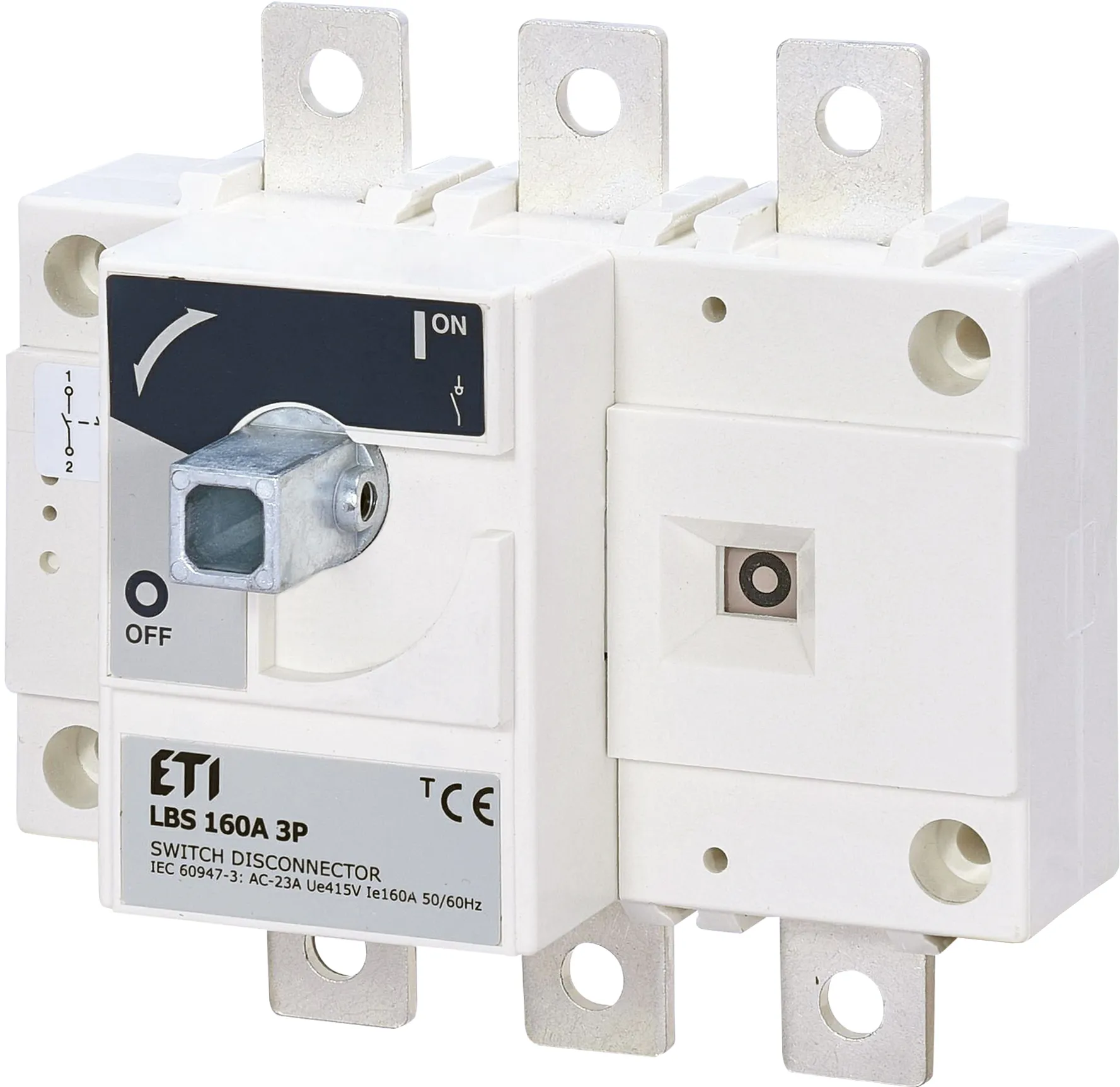

Switch disconnector LBS 160 3P 004661450

Specifications

ETI Code:
004661450
Description:
LBS 160 3P
Class name:
Switch disconnector
Number of poles:
3
Thermal current Ith (A):
160A
Rated operational current Ie AC-21 A/B at 415V (A):
160A
Rated insulation voltage (V):
800V
Max. rated operational voltage (V AC):
415V

Documents

Product

Net weight of the product
1.11  kg
Customs tariff
85365080
logis_net_width
140  mm
logis_net_height
135  mm
logis_net_depth
90  mm

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
3838895718833
Transport packaging weight
1.11  kg
Pallet quantity
400
Classification
EC000216
Class name
Switch disconnector
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Rated permanent current Iu
160A
Rated operation power at AC-23, 400 V
80kW
Number of poles
3
Device construction
Built-in device fixed built-in technique
Suitable for floor mounting
Yes
ETIM Classification – Version 7.0
004661450 Switch disconnector, LBS 160 3P ETISWITCH Load Break Switch LBS LBS body (no handle included) 3/4 POLES LBS body(no handle included) 3/4 POLES 3P Switches for panel mounting ETISWITCH Load break switch LBS LBS 160 3P Rated current 160A Mounting type Base plate mounting Number of poles 3 Mounting Panel mounted Catalogue Group Load Break Switch LBS Max. rated operational voltage 415V AC Rated operational current Ie AC-21 A/B at 415V 160A Rated insulation voltage 800V Thermal current Ith 160A
