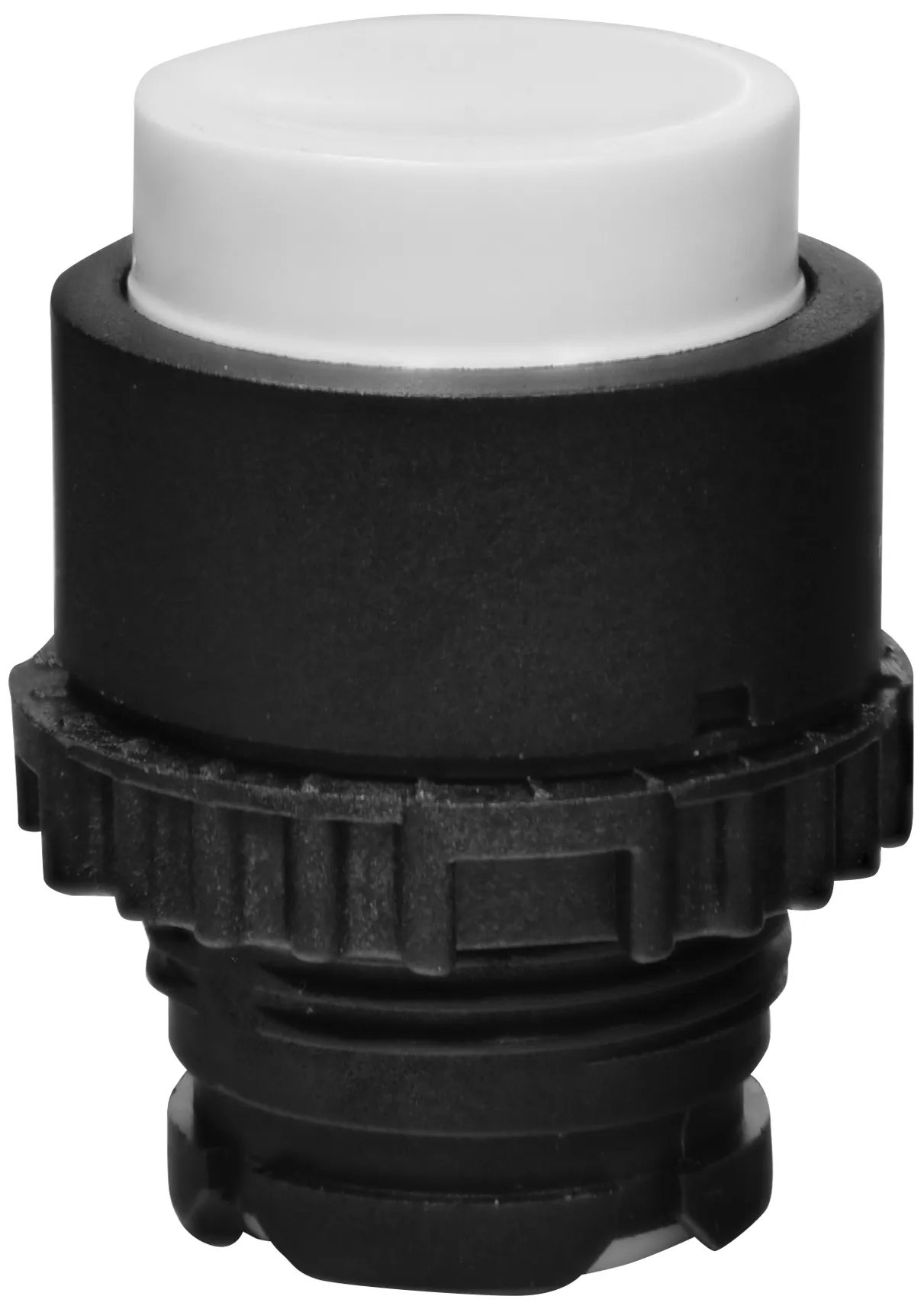

Push button actuator NSE-PBP-W 004774010

Specifications

ETI Code:
004774010
Description:
NSE-PBP-W
Class name:
Push button actuator
Function:
Extended head pushbutton
Type:
Spring return, non-illuminated

Documents

Product

Net weight of the product
0.017  kg
Customs tariff
85365080
logis_net_width
31  mm
logis_net_height
31  mm
logis_net_depth
33  mm

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
7909712854723
Transport packaging weight
0.021  kg
Pallet quantity
1080
004774010 Push button actuator, NSE-PBP-W ETISIG NSE Actuators and indicators NSE Actuators and indicators Non-illuminated actuators Non-illuminated actuators Push Button Projecting type Automation, signaling and control devices Actuators and indicators 22,5mm ETISIG Actuators and indicators with accessories Actuators and indicators Function Extended head pushbutton Type Spring return, non-illuminated IP rating IP66 Color White Standards IEC 60947-5-1, ISO 13850 (EN 418), IEC 60947-5-5 Number of NO contacts 1 Contacts 1x NO Rated insulation voltage 690V Hole diameter 22,5mm Approvals CE Mechanical cycles 3.000.000
