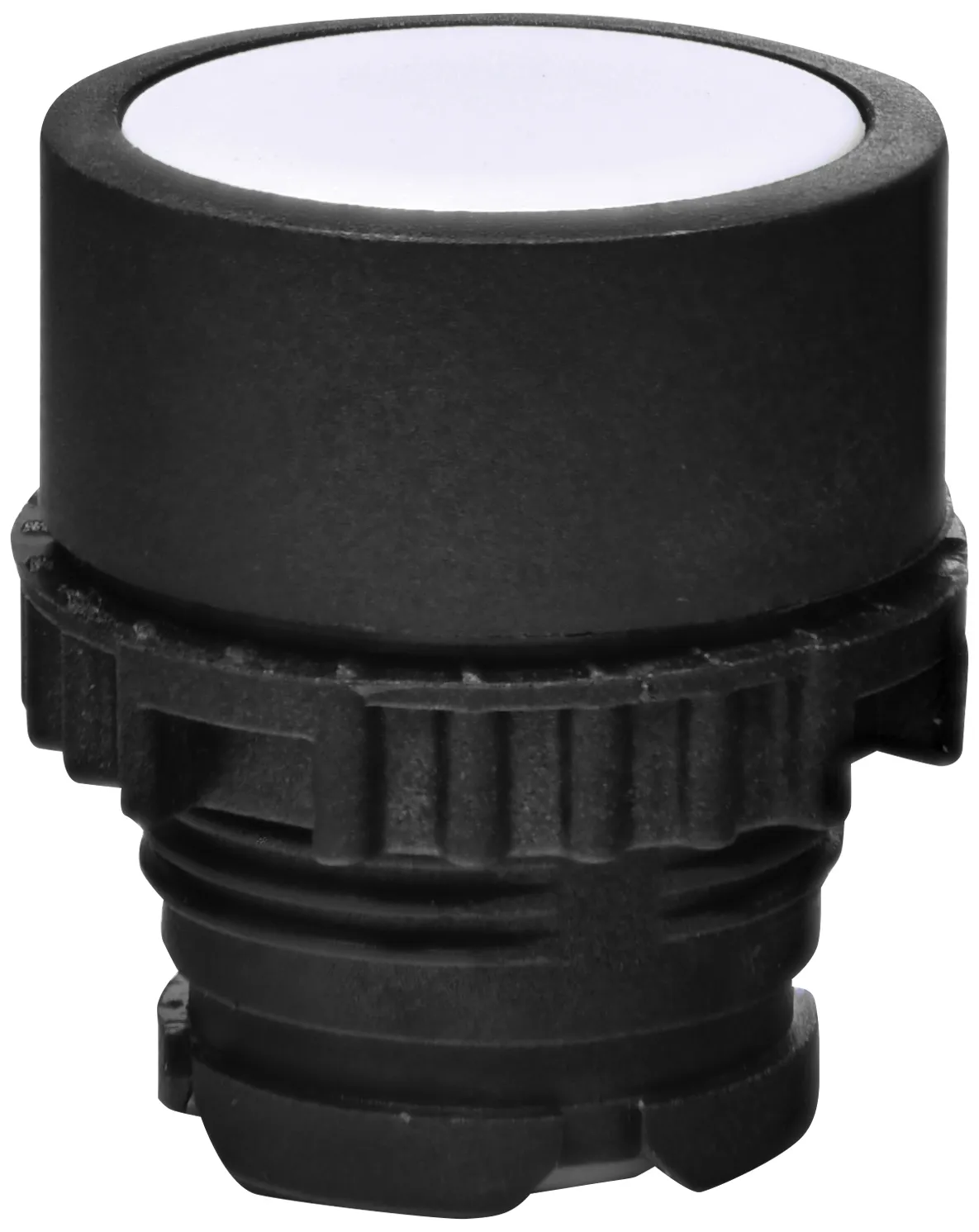

Push button actuator NSE-PBF-W 004774000

Specifications

ETI Code:
004774000
Description:
NSE-PBF-W
Class name:
Push button actuator
Function:
Flush head pushbutton
Type:
Spring return, non-illuminated

Documents

Product

Net weight of the product
0.017  kg
Customs tariff
85365080
logis_net_width
31  mm
logis_net_height
31  mm
logis_net_depth
27  mm

Basic packaging

Basic packaging quantity
1

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
7909712854662
Transport packaging weight
0.021  kg
Pallet quantity
270
004774000 Push button actuator, NSE-PBF-W ETISIG NSE Actuators and indicators NSE Actuators and indicators Non-illuminated actuators Non-illuminated actuators Push Button Flush type Automation, signaling and control devices Actuators and indicators 22,5mm ETISIG Actuators and indicators with accessories Actuators and indicators Function Flush head pushbutton Type Spring return, non-illuminated IP rating IP66 Color White Standards IEC 60947-5-1, ISO 13850 (EN 418), IEC 60947-5-5 Number of NO contacts 1 Contacts 1x NO Rated insulation voltage 690V Hole diameter 22,5mm Approvals CE Mechanical cycles 3.000.000
