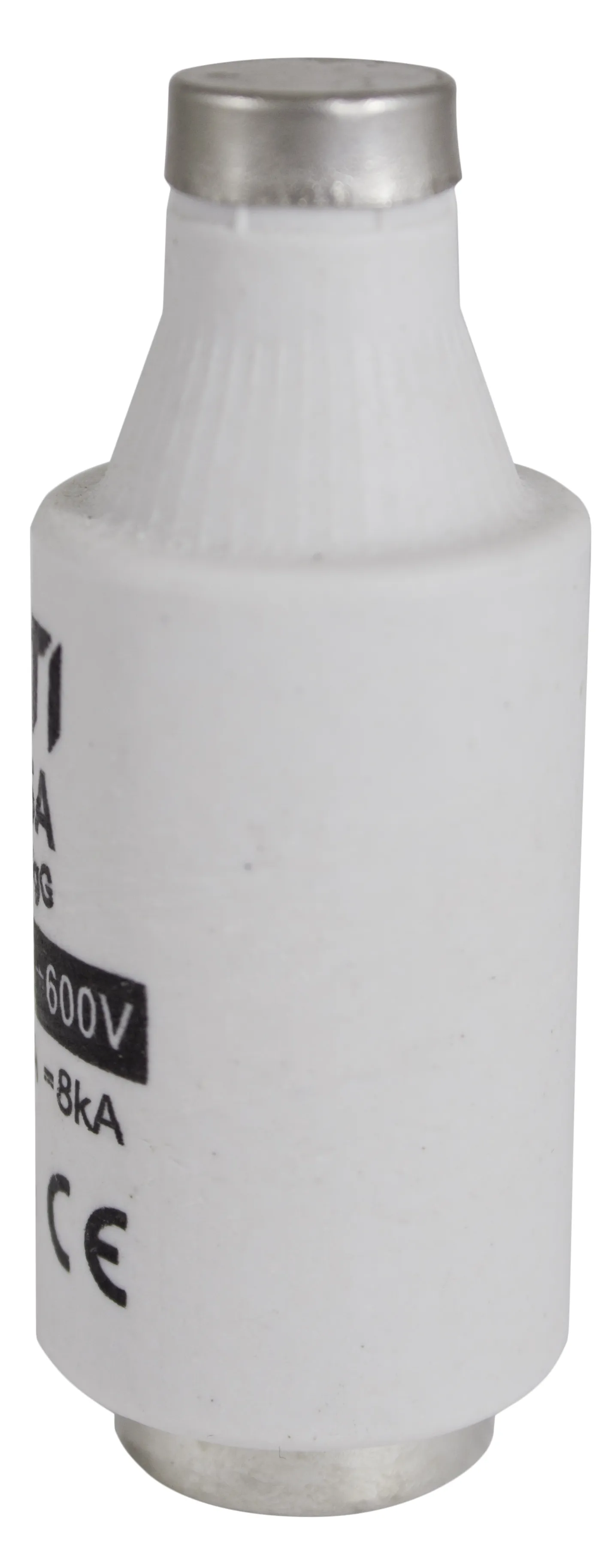

Fuse link DIII gG 16A/690V 002313505
Specifications
- ETI Code:
- 002313505
- Description:
- DIII gG 16A/690V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- D
- Size:
- DIII
- Rated current (A):
- 16A
- Rated AC voltage (V):
- 690V
- Rated DC voltage (V):
- 600V
- Characteristics:
- gG
- Breaking capacity AC (kA):
- 50kA
- Breaking capacity DC (kA):
- 8kA
- Indicator:
- Top fuse status indicator
- Standards:
- DIN EN 60269-1,DIN EN 60269-3
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400029133
- Net weight of the product
- 0.072 kg
- Customs tariff
- 85361050
- logis_net_width
- 27 mm
- logis_net_height
- 27 mm
- logis_net_depth
- 70 mm
Basic packaging
- Basic packaging quantity
- 5
- EAN code for a basic packaging
- 3838895421887
- Basic packaging weight
- 0.353 kg
Transport packaging
- Transport packaging quantity
- 200
- EAN code for a transport packaging
- 3838895421894
- Transport packaging weight
- 14.4 kg
- Pallet quantity
- 10400
ETIM Clasification
- Classification
- EC000099
- Class name
- D-system fuse link
- Construction size
- DIII
- Rated current
- 16A
- Rated voltage
- 690V
- Colour code
- Grey
- Utilization category
- gL/gG (cable protection/equipment protection)
- Release characteristic
- Time-lag (T)
Characteristic
Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
DIII gG 16A/690V
