Revolutionizing Fuse Selection with ETIFUSE - An Online Comparative Tool

ETIFUSE is an award winning innovative online tool that will speed up and eliminate the guess work from the fuse selection process. It simplifies and streamlines the process of analysing I/t characteristics of fuse-links, offers interactive, accurate comparisons, adheres to international standards, and provides a user-friendly interface for efficient fuse selection. A must-try for those seeking to enhance safety and efficiency in electrical design.



Sabina Pešec, M.Sc.
ETIFUSE project manager



In the realm of electrical engineering and design, selecting the right fuse for a specific application is crucial. It’s a process that requires careful consideration of various parameters such as rated current, rated voltage, breaking capacity, and notably, the time-current (I/t) characteristic of the fuse, which refers to how rapidly the fuse responds to various current overloads. It enables us to select a fuse that will interrupt fast enough to protect the circuit from unexpected overloads, but not open under normal operating conditions. Wrong fuse selection can result in destruction of the protected application, fire or even explosion.

Traditionally, this fuse selection process involved cumbersome methods like consulting bulky catalogues and using rulers, or relying on complex software that required installation and regular updates. However, we at ETI have transformed this process with the development of the ETIFUSE tool. This innovative online tool simplifies the analysis and comparison of I/t characteristics of our fuse-links, making the selection process more accessible, accurate, and efficient.

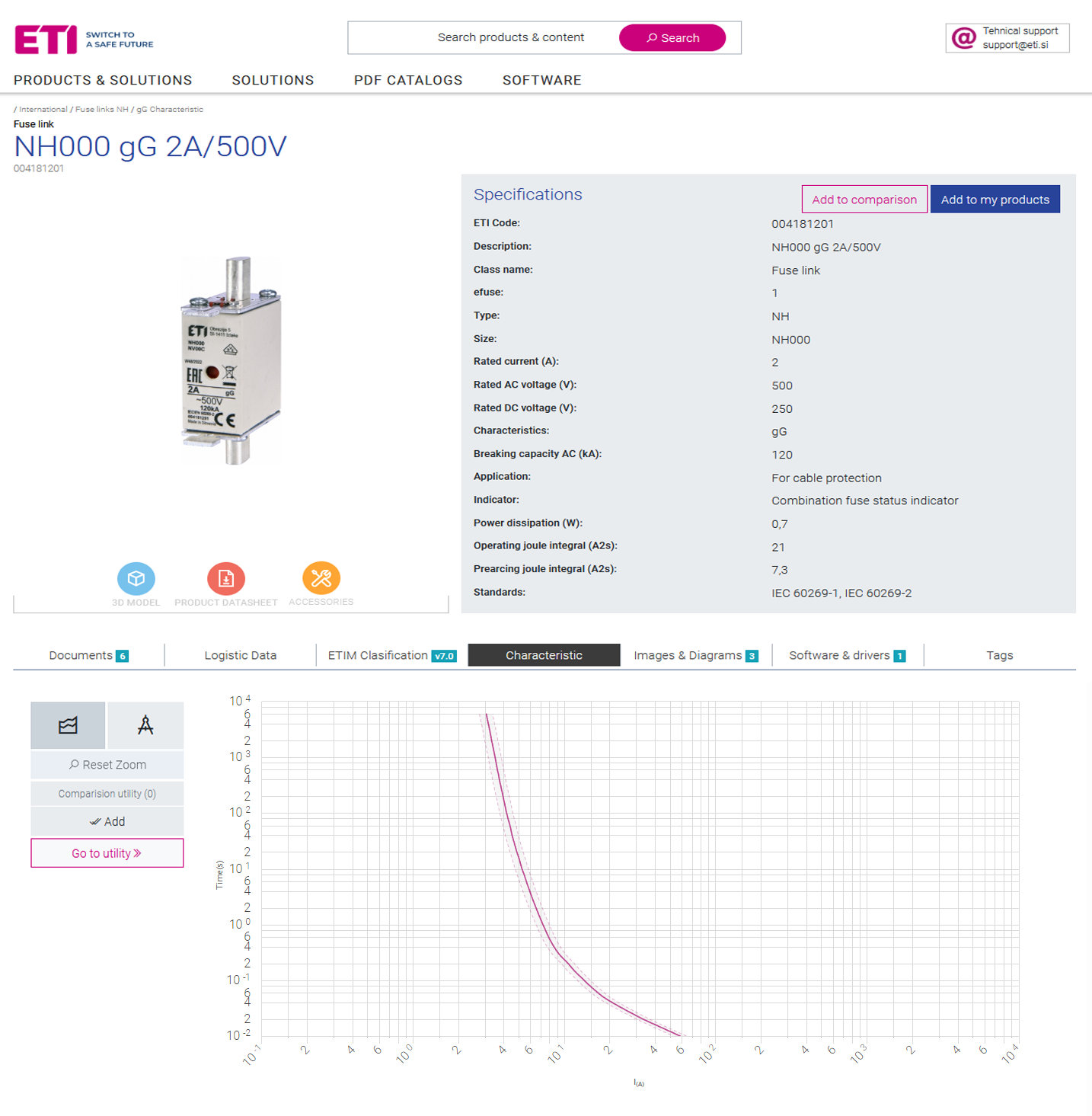

ETIFUSE tool is part of our fuse-links' product page


Simplified Online Access

The ETIFUSE tool is integrated on the product page of each fuse-link on ETI's website. This means users can access interactive I/t characteristic graphs of each fuse anytime, anywhere, anyhow. The tool is not just confined to a single device; it's universally accessible across various devices, ensuring that users can make informed decisions on-the-go. It enables the analysis of a single fuse-link’s I/t characteristic or comparison of characteristics of multiple fuse-links.



Interactive and Accurate Comparison

One of the standout features of ETIFUSE is its ability to compare the I/t characteristics of different fuses interactively and precisely. The tool plots the I/t characteristic based on measured and calculated data for each point on the graph, ensuring high accuracy. This is a significant upgrade from the traditional methods where comparisons were often based on rough estimates or experience. Users can hover over the curve to see data for each point, eliminating the need for approximations.

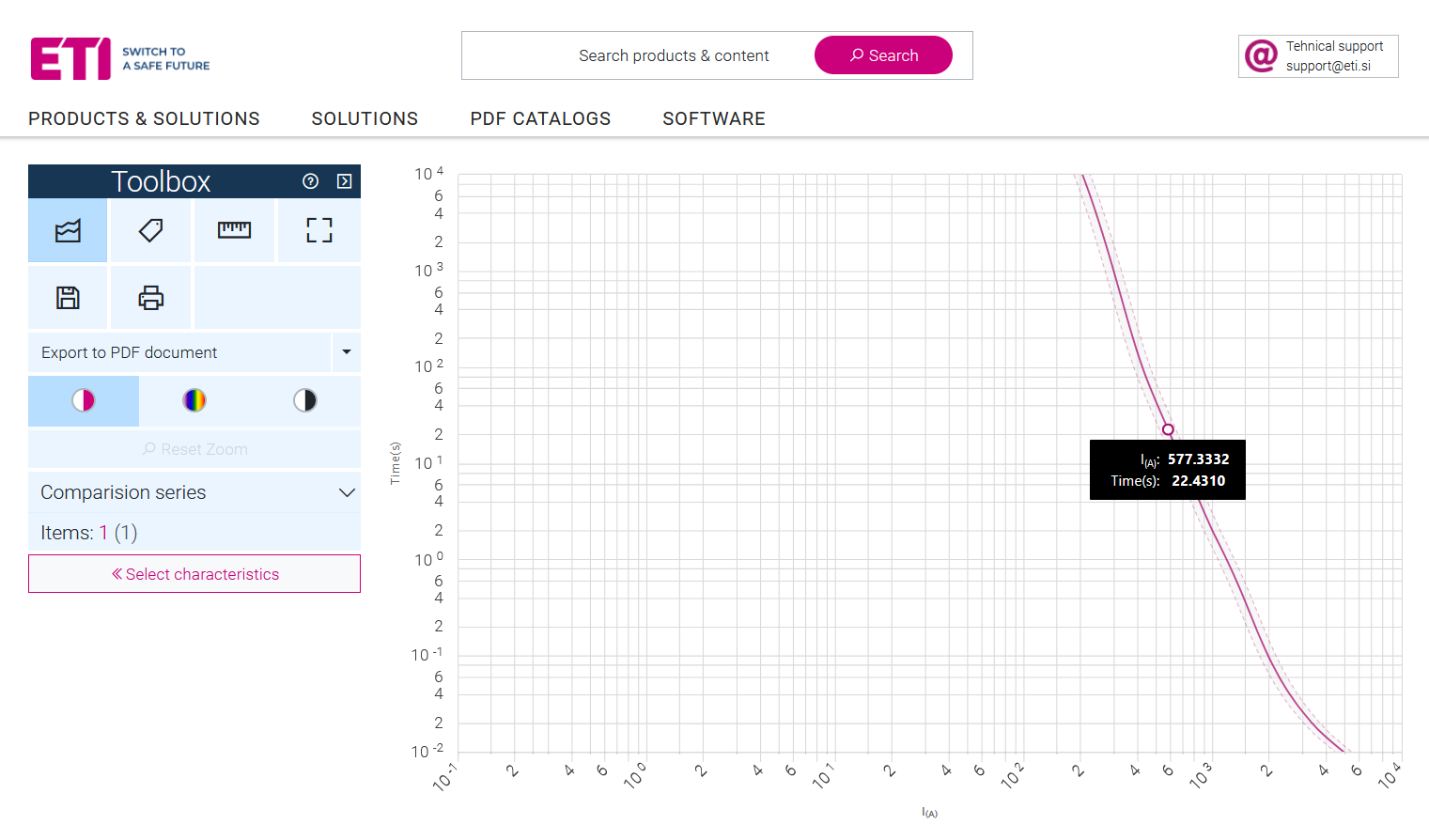

ETIFUSE tool ensures total accuracy and includes tolerance zones according to IEC 60269-5



Adherence to Standards and Enhanced Safety

The ETIFUSE graph not only shows the I/t characteristics but also includes the tolerance zones as determined by the IEC 60269-5 standard. This feature, which is not available in the printed or .pdf versions, adds an extra layer of reliability and compliance with international standards.



Fuse-link Comparison Through User-Friendly Interface

ETIFUSE is designed with the user in mind. The tool allows for the comparison of an unlimited number of fuse-links, with features like graph enlargement and personalized link sharing. Users can also save their analysis in various file formats, a handy feature for project documentation.

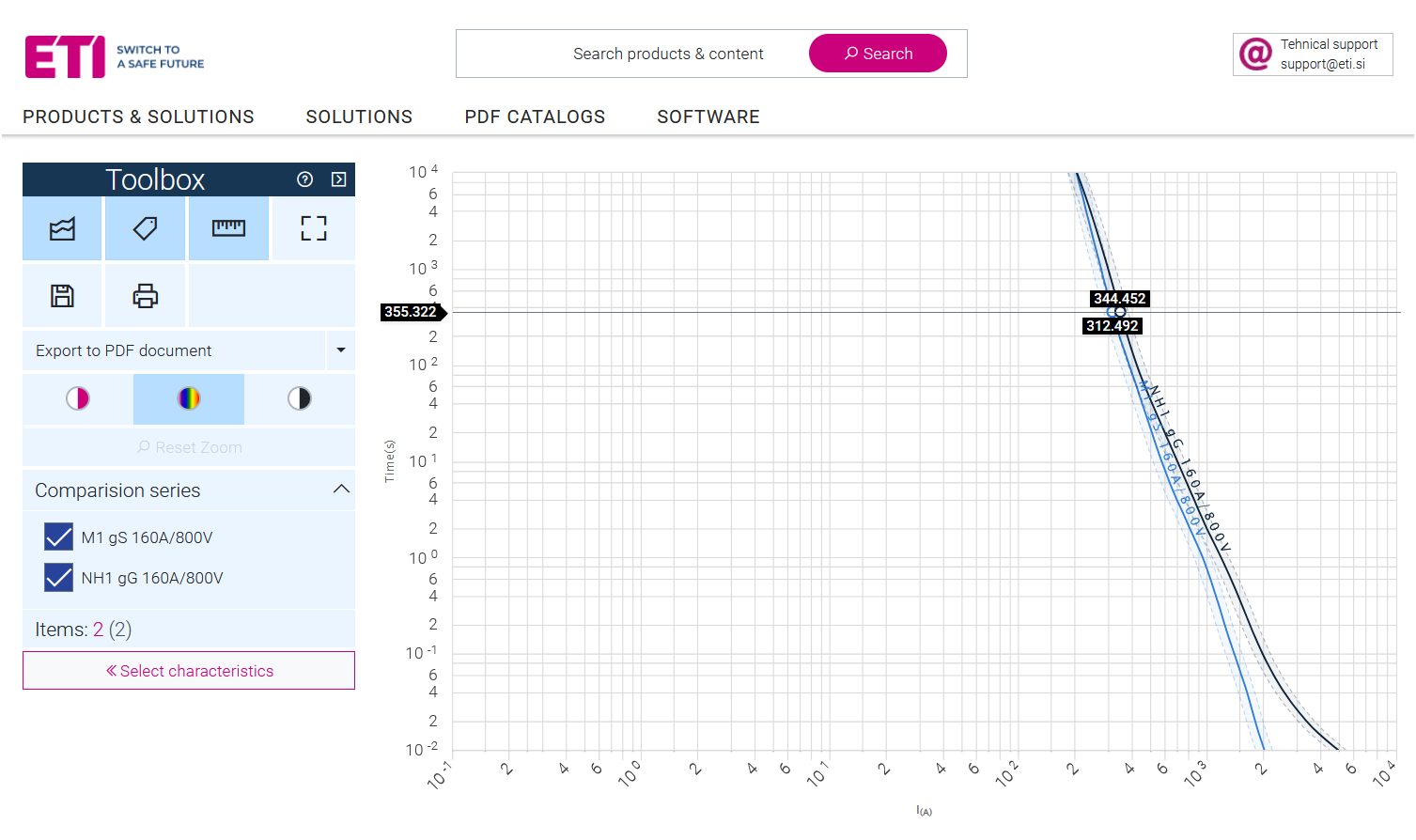

Detailed data for exact fuse-link comparison


Selection and Analysis Made Easy

The application is divided into two parts: selection and analysis. In the selection part, users can easily navigate through product groups, search freely, and filter according to various parameters. The comparative part offers functionalities like plotting characteristics of selected products, adjusting graph size, and displaying only data based on selected filters.

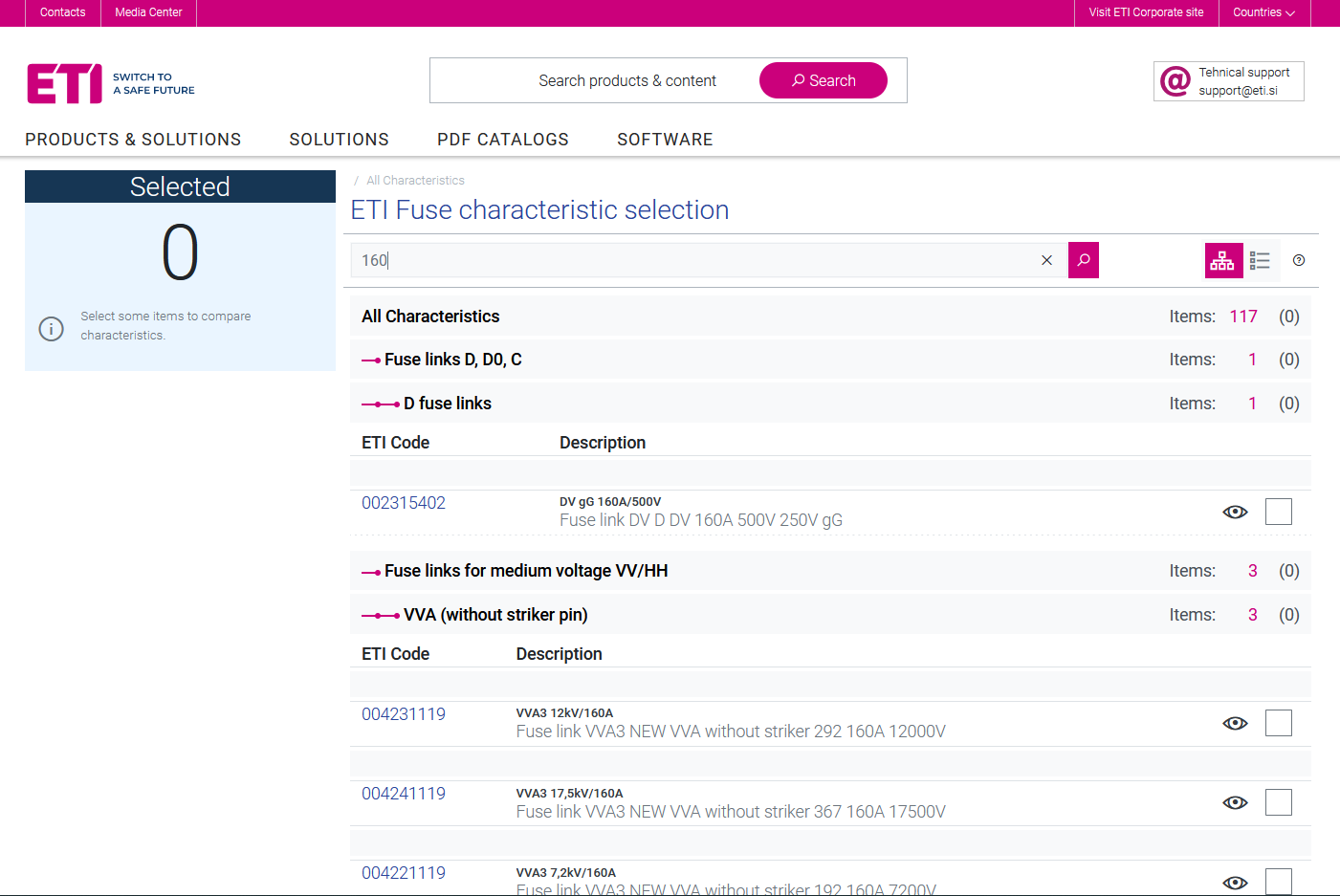

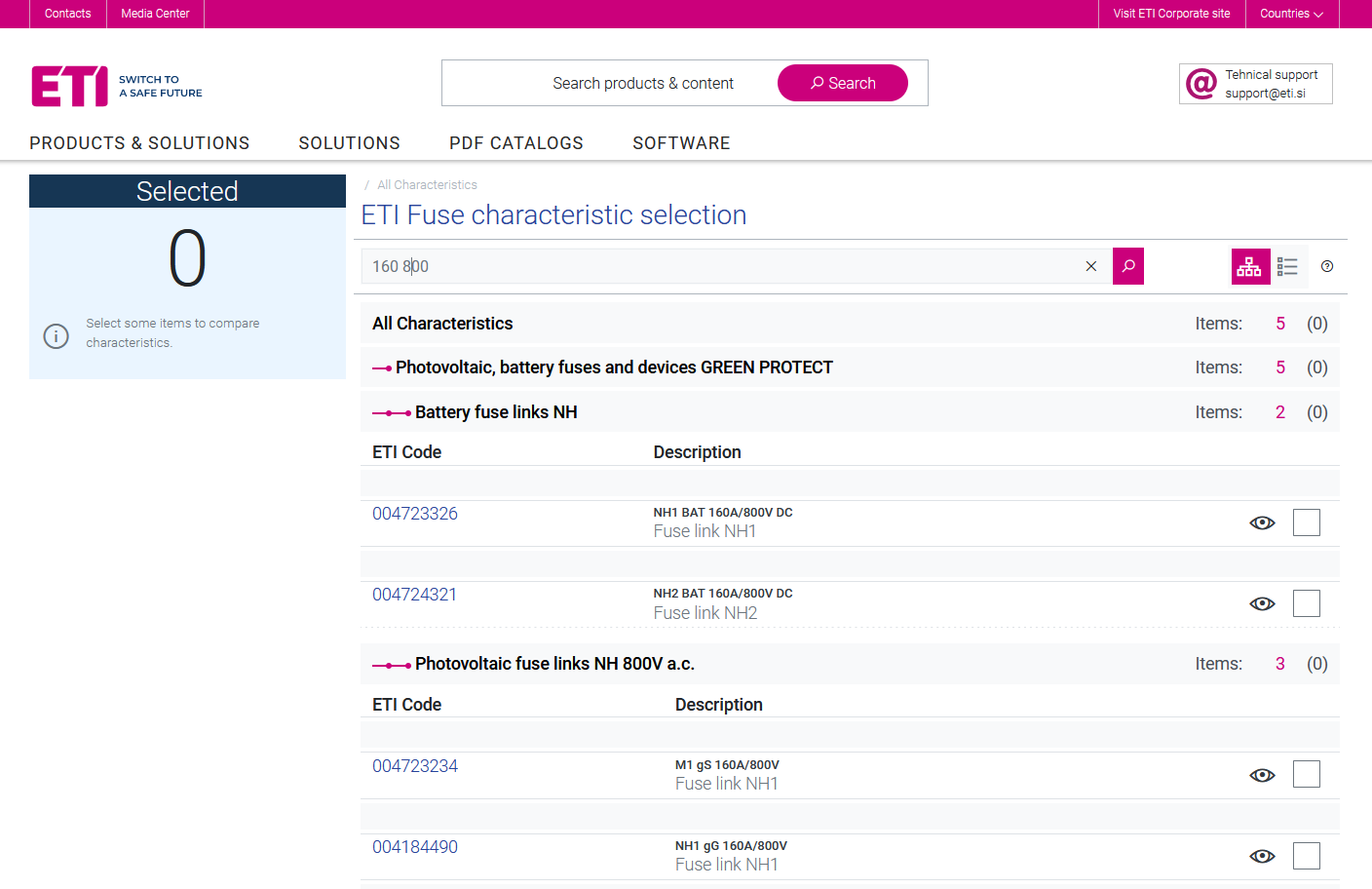

Easy search and selection of fuse-links for comparison


Versatility in Data Export and Customization

With options to export views in several formats (PDF, SVG, PNG, JPG) and features like printing and saving selections for later review, the tool is incredibly versatile. It even offers a configurable environment with different colour themes for the graph, enhancing the user experience.

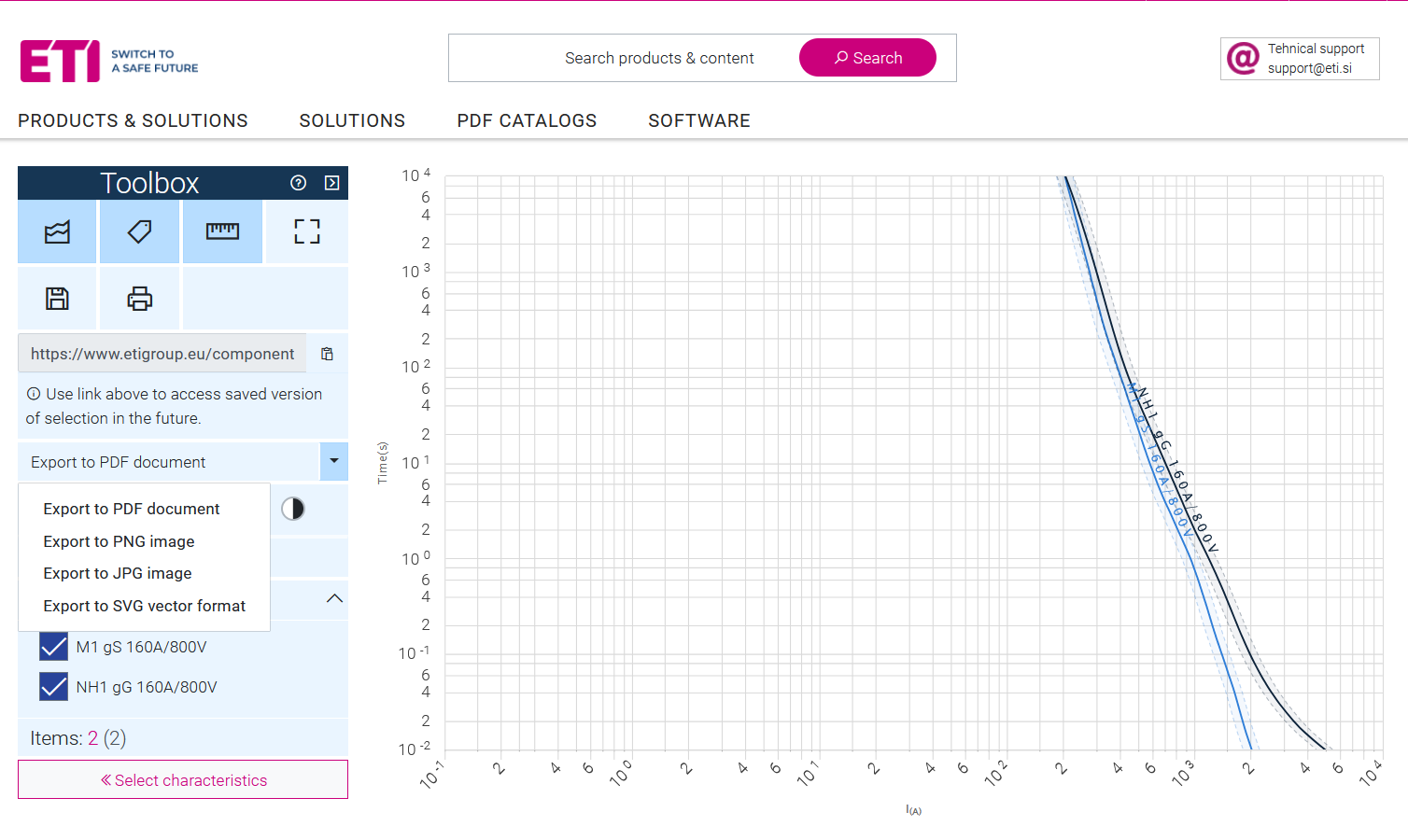

Various export and share options


Conclusion

ETIFUSE represents a significant leap forward in the way our users can now select appropriate fuses. It transforms a traditionally complex and time-consuming process into a streamlined, accurate, and user-friendly experience. With its comprehensive features and easy accessibility, ETIFUSE is not just a tool but a game-changer in the world of electrical design and safety.
